AI895 3BSC690086R1 Analog Input Module ABB S800 With HART Communication

Brand Name : ABB

Model Number : AI895 3BSC690086R1

Place of Origin : Sweden

MOQ : 1

Price : Negotiations

Delivery Time : 3-5 working days

Packaging Details : New original box

Contact Now

AI895 3BSC690086R1 ABB S800 Analog Input Module with HART communication

AI895 3BSC690086R1

The AI895 Analog Input Module can directly interface 2-wire transmitters and with a particular connection it can also interface 4-wire transmitters without losing the HART capability. The AI895 Analog Input Module has 8 channels. The module includes Intrinsic Safety protection components on each channel for connection to process equipment in hazardous areas without the need for additional external devices. Each channel can power and monitor a two-wire process transmitter and HART communication. The input voltage drop of the current input is typically 3 V, PTC included. The transmitter supply for each channel is able to provide at least 15 V at a 20 mA loop current to power Ex certified process transmitters and is limited to 23 mA in overload conditions.

General Information
Product ID	3BSC690086R1
ABB Type Designation	AI895
Catalog Description	AI895 Analog Input IS HART 8 ch
Long Description	4...20mA single ended. Intrinsic Safety Interface and HART.
Use Module Termination Unit TU890 or TU891

Additional Information
Medium Description	4...20mA single ended. Intrinsic Safety Interface and HART.
Use Module Termination Unit TU890 or TU891
Product Type	I-O_Module

Ordering
HS Code	853890-- Parts suitable for use solely or principally with the apparatus of heading 85.35, 85.36 or 85.37.- Other
Customs Tariff Number	85389099

Dimensions
Product Net Depth / Length	102 mm
Product Net Height	119 mm
Product Net Width	45 mm
Product Net Weight	0.3 kg

Technical
Channel Type	ANALOG
Number of Input Channels	8
Number of Output Channels	0

Environmental
RoHS Status	Following EU Directive 2011/65/EU
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
Number of Batteries	0

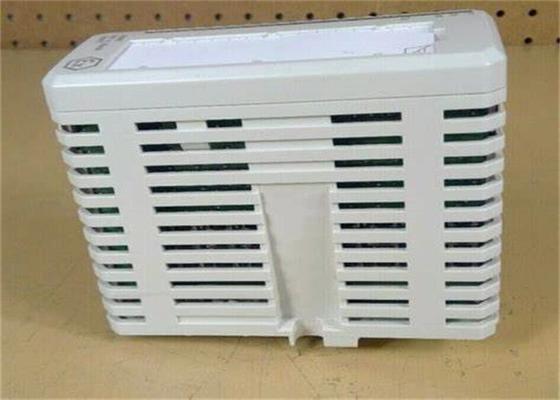

AI895 3BSC690086R1 Analog Input Module ABB S800 With HART Communication Images
